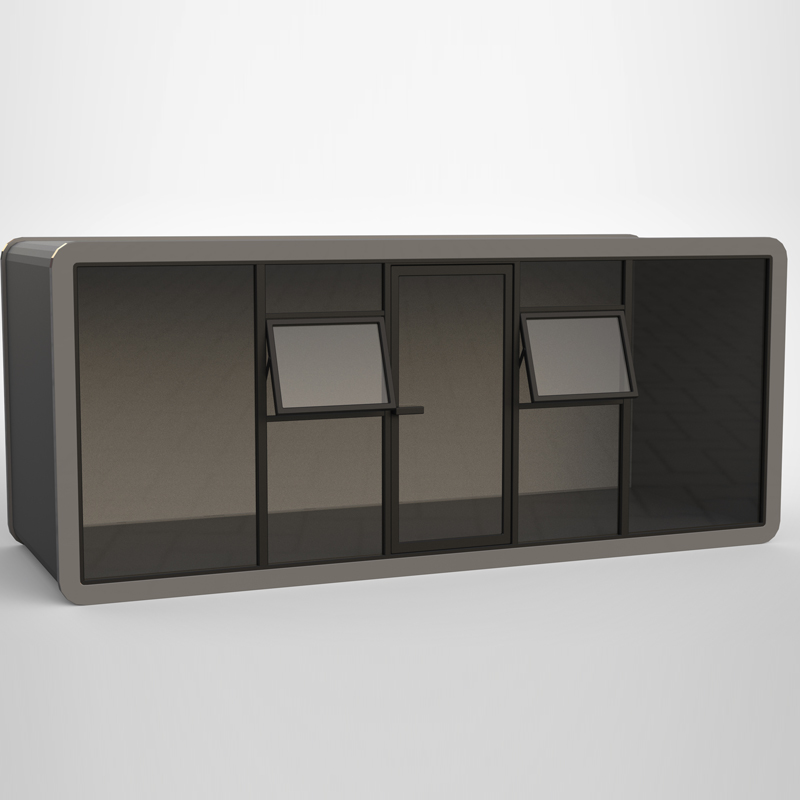

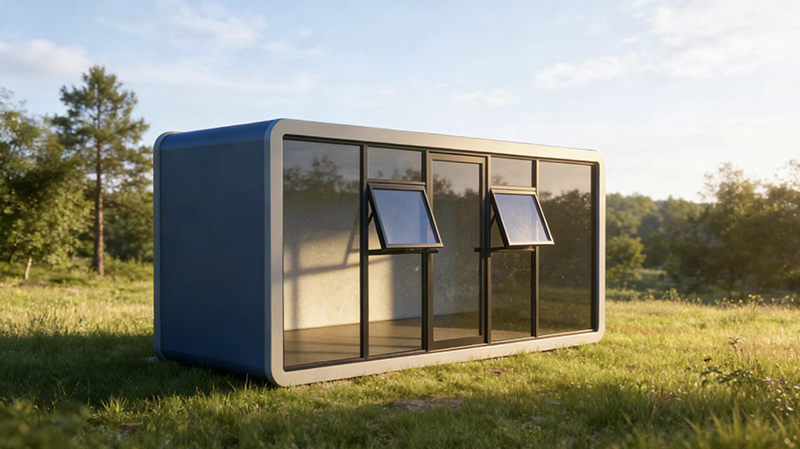

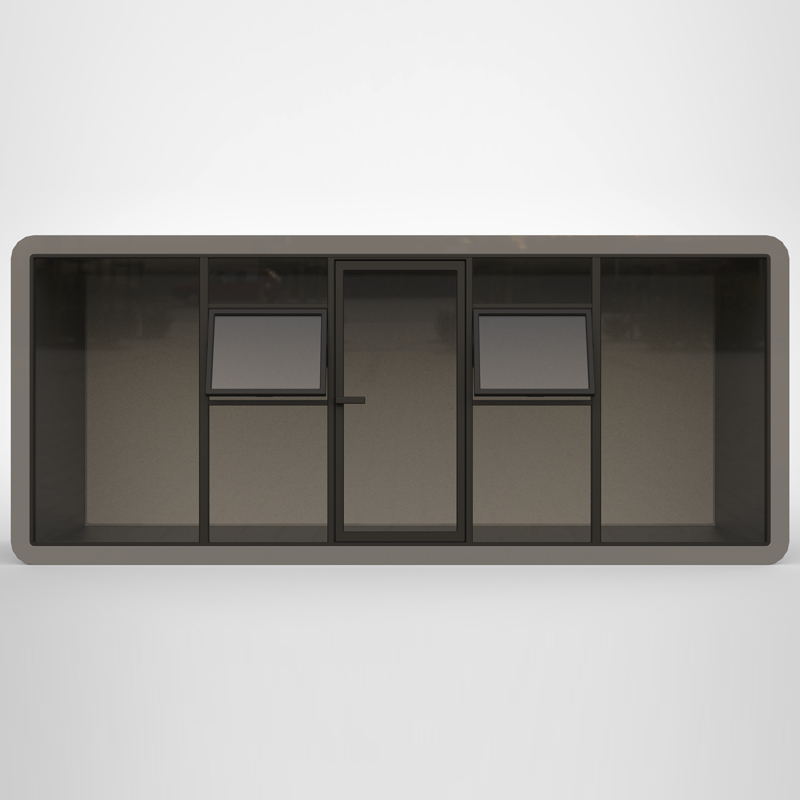

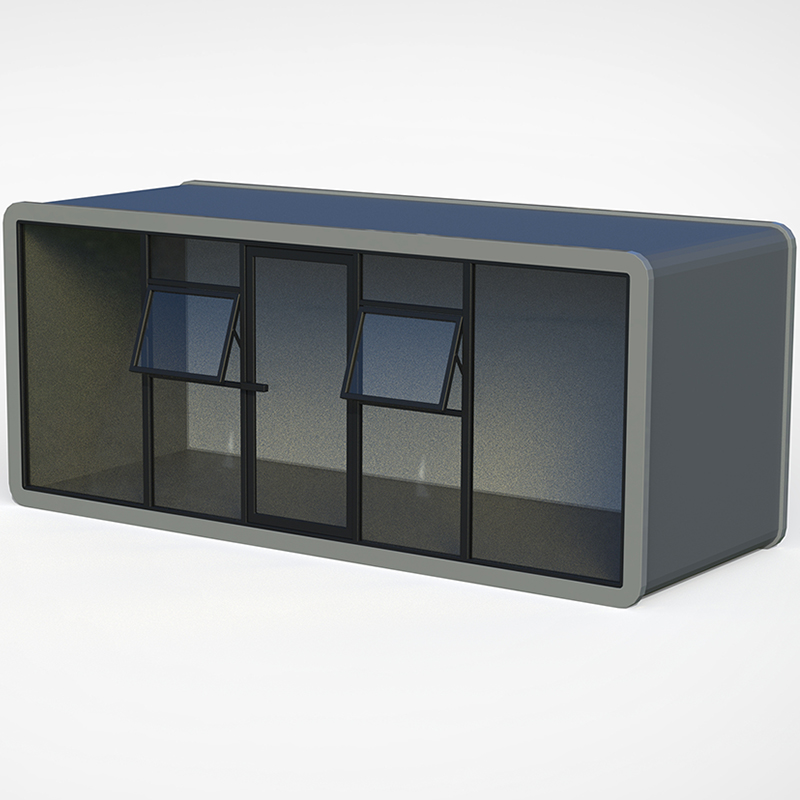

| 20ft苹果舱移动房配置清单 20ft Apple Cabin Configuration List | ||||||
| A | 尺寸 Specification | 5800mm*2200mm*2450mm | =DISPIMG("ID_15E49AB03B1A46C8851C869E15A1C57E",1) | |||
| B | 架构 | 部分 Part | 描述 Description | 图片 picture | ||
| C | 1.框架（Q235镀锌方管) Frame（Q235 Galvanized square tube） | 主框架 Main frame | 100mm*100mm*2.5mm |  | ||
| 墙面 Wall | 40mm*60mm*1.2mm、角柱斜拉加强 Corner column diagonal reinforcement | |||||
| 底面 Bottom | 40mm*60mm*1.2mm、横向间距不低于400mm Horizontal spacing not less than 400mm | |||||
| 顶面 Top | 40mm*80mm*1.5mm | |||||
| 油漆 Paint | 环氧富锌底漆+专用面漆 Epoxy zinc-rich primer + special topcoat | |||||
| 2.地面 Ground | 基板：18mm高密度水泥压力板 Substrate: 18mm high-density cement pressure plate | =DISPIMG("ID_D391F948C67D460794B56DCF1AF10B95",1) | ||||
| 地板：10mm复合木地板、搭配踢脚线(颜色可选） Floor:10mm composite wood flooring with skirting line（colour optional） | =DISPIMG("ID_499609C68A9E48D7844F2108214D37FA",1) | |||||
| 3.墙面 Wall | 外墙 Exterior wall | 1.5mm镀锌板（颜色可选） 1.5mm galvanized panel(color optional) | =DISPIMG("ID_FAC6CC9B4E284173A1BB37AD60FDF40B",1) | |||
| 3.墙面 Metope | 内墙 Interior wall | 8mm竹木纤维板（颜色可选） 8mm bamboo fiberboard(colour optional) | =DISPIMG("ID_CD207F12B4FA4564BA41DAC75DC7BB53",1) | |||
| 外墙胶、内墙胶、内墙阴角线 External wall adhesive, internal wall adhesive, and internal wall corner lines | =DISPIMG("ID_DA0A69DBBFEA4F1E9B87083ECAD0DB02",1) | |||||
| 4.屋顶 Roof | 外屋顶 Outer roof | 0.8mm瓦楞板（满焊工艺、耐候结构胶、贴防水胶带） 10mm corrugated board (full welding process, weather resistant structural sealant, and waterproof tape) | =DISPIMG("ID_5815CE134C994BC8BAE40DB26CA688BC",1) | |||
| 内屋顶 Inner roof | 8mm竹木纤维板 8mm bamboo fiberboard | =DISPIMG("ID_83C57CB9EDD44FDAB0598B0C42FCCC5A",1) | ||||
| 5.保温 Thermal insulation | 50mm聚氨酯（可做加厚） 50mm polyurethane (can be thickened) | =DISPIMG("ID_4C97D1FD46E94572A736B9A0EC17C5A0",1) | ||||
| 6.门窗 Doors and windows | 入户门 Entrance door | 2200mm*1000mm断桥铝门 Insulated aluminium door | =DISPIMG("ID_32443BF9C4DF4E21A51A1162FEC3B6C9",1) | |||
| 窗户 Window | 800mm*1000mm断桥铝窗*2 Insulated aluminium window*2 | =DISPIMG("ID_E251A17DA81D4C76A85484905287F9D6",1) | ||||
| 7.玻璃 glass | 5+12+5双层中空钢化玻璃（福特蓝镀膜） 5+12+5 hollow tempered glass | =DISPIMG("ID_1F0B16CD4C7A48298F856B795B149342",1) | ||||
| 8.总控 Electric control | 漏电保护 Leakage protection | 断路器断电保护 Circuit breaker power-off protection | =DISPIMG("ID_DDFE327EE0DF4BE3AF72AB3D2A88E381",1) | |||
| 内部线路 Internal Wiring | 主线6平方、配空调插口 Main line 6 square milimeters, equipped with 16A socket | =DISPIMG("ID_3F70D72D39434294BF1A7545AC7C5899",1) | ||||
| 插座 socket | 澳新标准 Australia and New Zealand Standards | =DISPIMG("ID_0285DF742BA944D7A95B968E2D71FA24",1) | ||||
| 灯具 lamps and lanterns | LED圆形吸顶灯 LED ceiling lights | =DISPIMG("ID_BF0DE906D1AB438793ABFE1A4BC5FB48",1) | ||||
| FOB Qingdao Price: 5485USD/unit | ||||||
